Set instrument type

From the context menu for every instrument and plant node, it is possible to set the instrument type. The instrument type is a template containing information about input and output quantities as well as output category and which type of calibration method that is set to be used for the calibration.

Setting instrument type for an instrument​

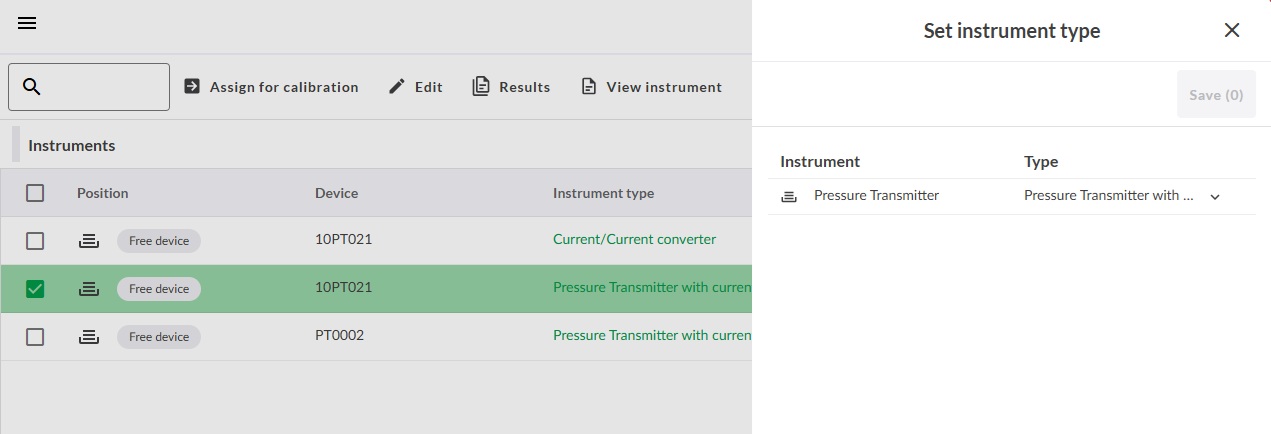

Set instrument type for instrument

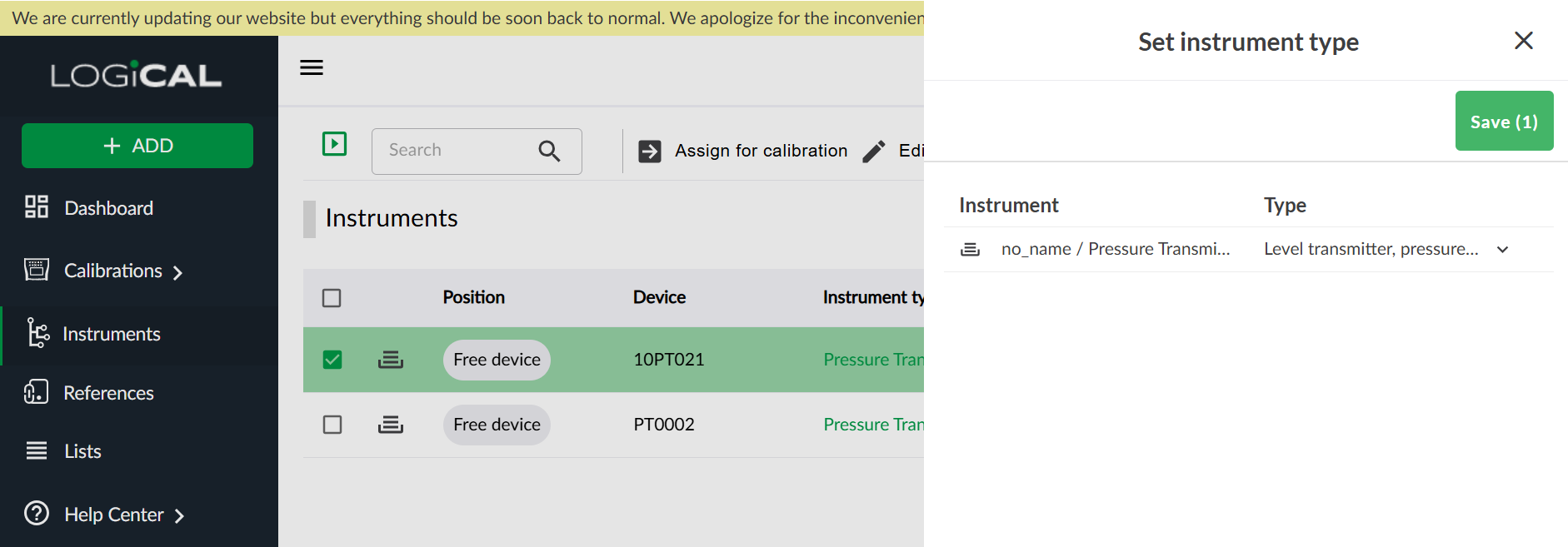

By selecting and right clicking one or multiple instruments in the view and clicking Set instrument type a dialogue for setting the instrument type opens up in the sidebar.

Setting instrument type for all instruments in a plant node​

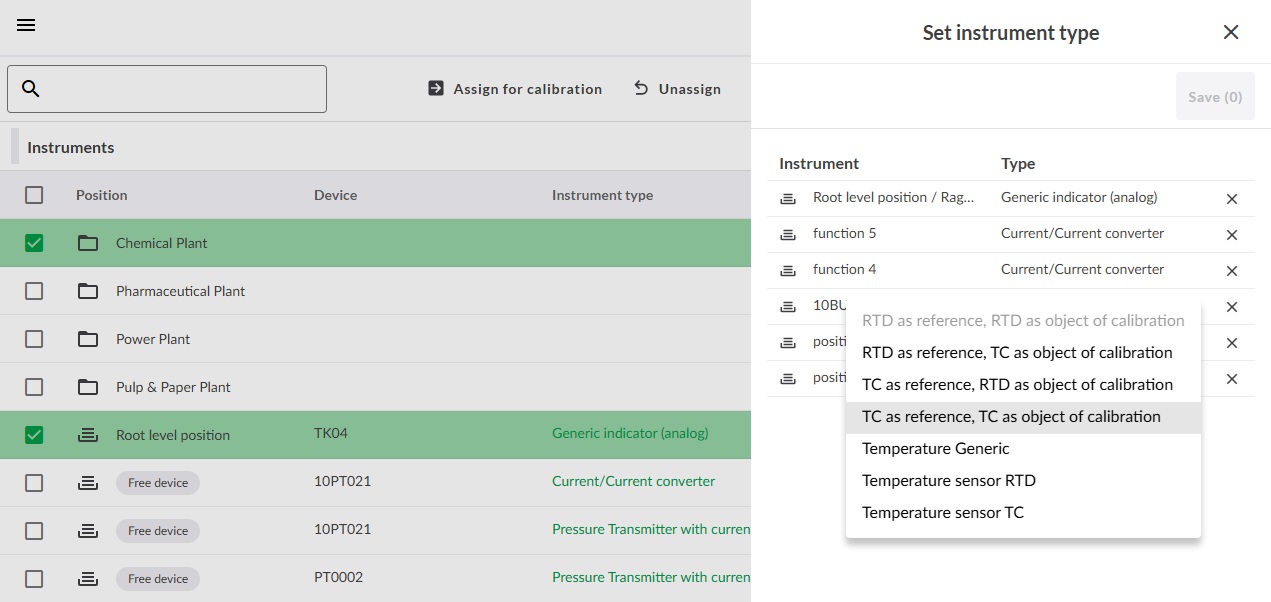

Set instrument type for plant node

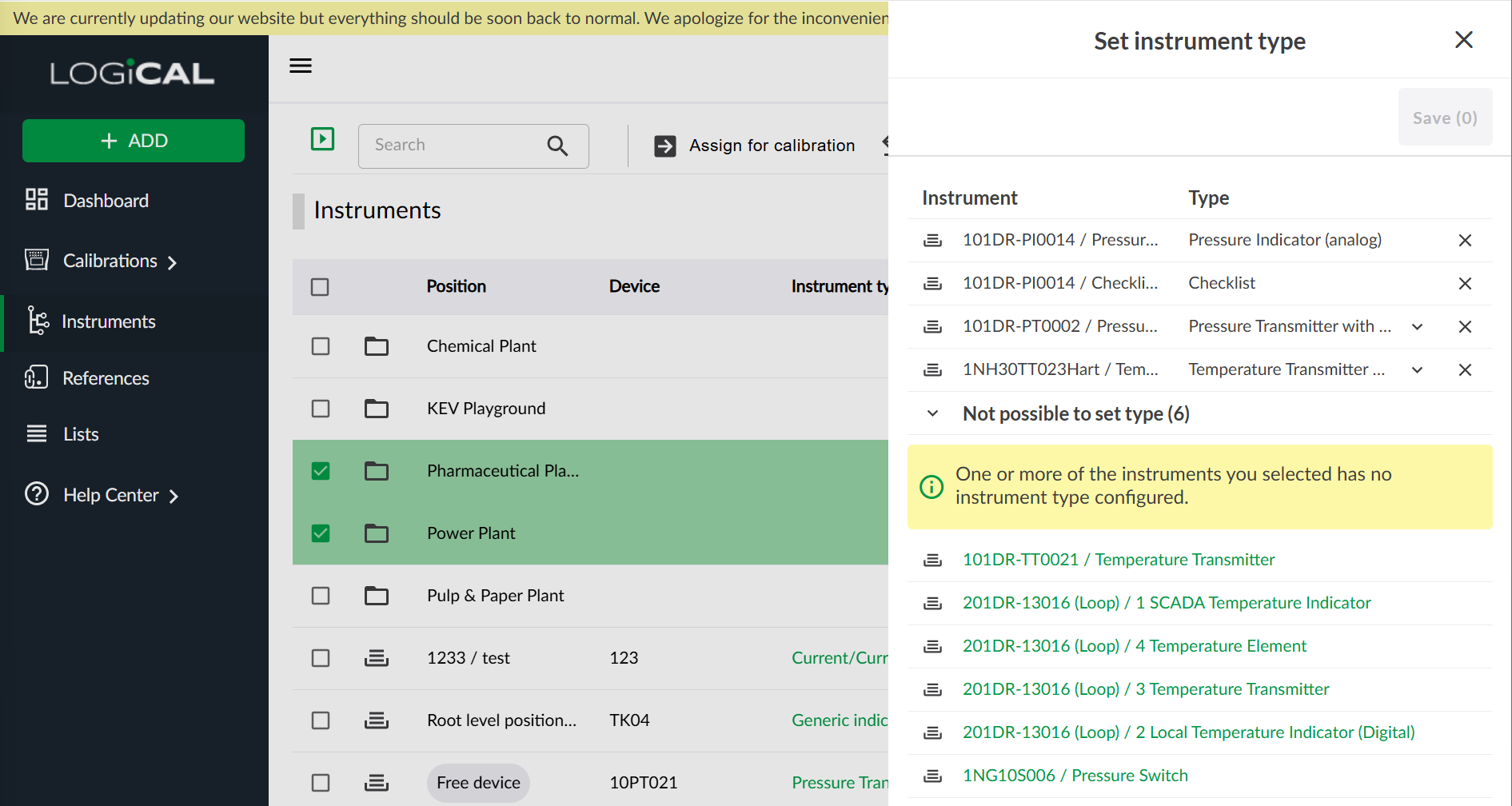

By selecting and right clicking one or multiple plant nodes in the view and clicking Set instrument type a dialogue for setting the instrument type opens up in the sidebar. The dialogue shows all instruments available in the specific plant node and it's children.

It is possible to remove an instrument from the list by clicking the corresponding X
